Product - Kneader

~ Dispersion Kneader ~

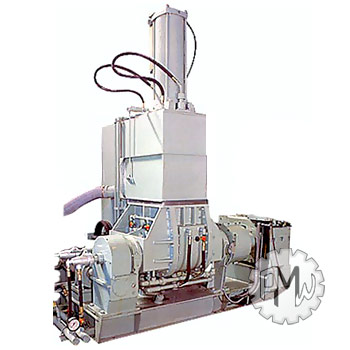

Dispersion Kneader

We at PMW offers complete series of KNEADERS. To 100 Litre Production model in Rear charge and front discharge type with hard faced Rotors and chambers for long life. Dispersion Kneader was developed to cater the need for a mixer capable of : hard mixing from process compounding. Dispersion Mixer can be employed in a wide range of material mixing.

Range Available:

SIZE MAIN
MOTOR
ROTOR
rpm
TILT
METHOD
TILT
MOTOR
AIR
COMP.

5 Ltrs.

7.5 HP 33.28 Pneumatic - 1.5 HP
15 Ltrs. 25 HP 33.28 Screw 1.5 HP 2 HP
25 Ltrs. 40 HP 32.28 Screw 2 HP 2 HP
35 Ltrs. 60 HP 32.28 Screw 2 HP 3 HP
55 Ltrs. 75/100 HP 31.28 Screw 3 HP 5 HP
75 Ltrs. 100/125 HP 31.28 Screw 5 HP 7.5 HP
110 Ltrs. 125/150 HP 30.28 Screw 7.5 HP 10 HP
110 Ltrs. 150/175 HP 30.28 Screw 10 HP 12.5 HP


Note: Different Version of machines as per clients requirements can be created.

* * *   * * *
